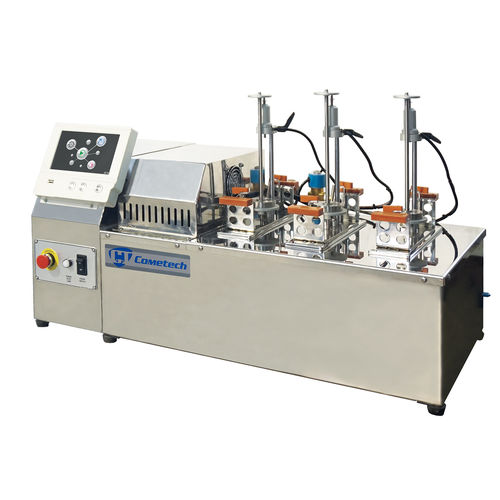

Temperature testing machine QC-662B

for plasticsfor rubbersurface

VST (Vicat Softening Temperature) is the temperature at which the surface of a loaded specimen(1kg or 5kg) is penetrated to a depth of 1mm by a standard needle (1mm2 cross section). The temperature increases by a steady rate of 50°C per hour. The tester is equipped with touch screen that guides users step by step. During the process, the display calculates the load required by the test automatically. A user-friendly interface and standardized process are designed to orientate users in the shortest possible and to reduce test errors. The display shows specimen temperature and LVDT displacement at each station. The temperature record stops when it reaches deflection value and the tester starts cooling down. Smart testing process is time-saving and requires only a minimum of testers. The test is suitable for material that is hard at room temperature. The specimen is 3 to 6.5 mm thick and the dimension is at least 10 x 10 mm or Ø10mm. Keywords: Heat Deflection Tester, Vicat Tester, Vicat Softening Point of plastic materials, H.D.T. Testing Machine, Temperature test, Environment test, Test equipment, Deflection Temperature. Specifications Model QC-662B Temperature Room temperature up to 300℃ Temperature Control 50°C per hour (adjustable) Weight Method A: 1 Kg, Method B: 5 Kg Deflection reading 0.001 - 3.000 mm
