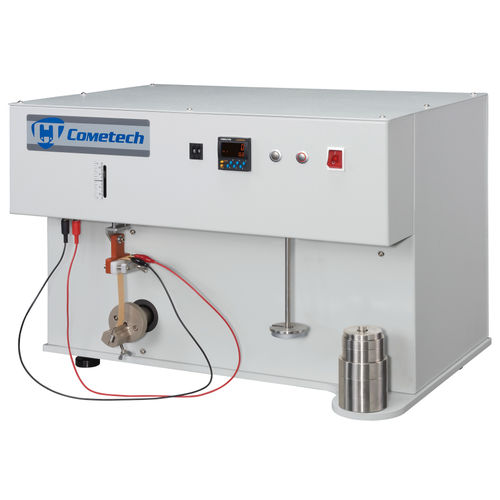

Endurance testing machine QC-104A

for plasticsindustrialfor the electronics industry

This machine is to test the folding endurance of paper, aluminum foil, ductile circuit board and copper foil, etc. QC-104 Folding endurance tester grip bending side has 0.38 R angle(Different material has different regulations), after specimen clamped and then use dead weight to offer a fixed tension, lower grip swing right and left each 135 degree, test speed 175 times per minute, record swing times when specimen breaks. Key Words:Folding Endurance, Circuit Board Folding Test, Soft Board Folding Test, Folding Test, Folding Tester,Fatigue Tester Specifications Bending angle +90°~-90° / +135°~-135°(or indicated) Bending speed 175±25CPM (or indicated) Angle radius(R) 0.38/0.5/0.8/1.0/2.0/3.5 Optional (Standard with one set 0.8) Grip interval(T) 0.25/0.5/0.75/1.0/1.25 mm (or indicated) Specimen tension 50~2000g attached weight for adjusting Counter 0~999,999 set auto stop times Gap between grips 70 mm Feature Machine will stop immediately when sample breaks. Power AC 110~AC 240V Dimension 62 × 37 × 45 cm Weight 71 kg
