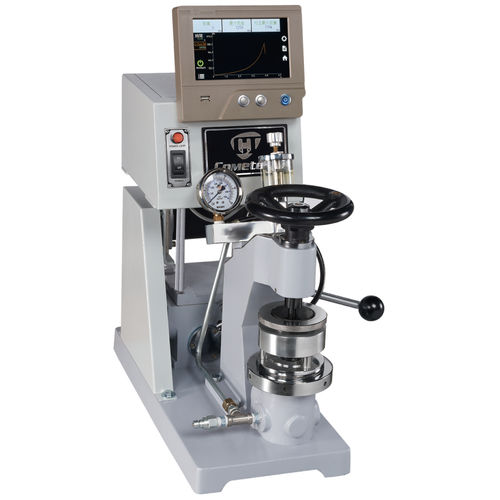

Burst testing machine QC-116

automaticfor paperfor textiles

The Bursting Strength Tester is used for samples such as base paper, corrugating paper, leather, synthetic leather. This tester is a digital type that features automatic compensation mechanism and sensor calibration to obtain a more accurate test result. The real-time force graph shows current status in various units for user’s choice, facilitating user’s data reading. Key words: Bursting test, Box bursting, Box bursting strength, Bursting strength Specifications Type High pressure/ Low pressure/ Textile Test speed High pressure：170 ± 15 ml/min Low pressure：95 ± 5 ml/min Textile：98 ± 4 ml/min Pressure display D1 Control touch panel Capacity 75 kg/c㎡ Platen diameter-Upper High pressure：31.5 ± 0.05 mm Low pressure：30.5 ± 0.05 mm Textile：30.5 ± 0.05mm Platen diameter-Lower High pressure：31.5 ± 0.05 mm Low pressure：33.1 ± 0.05 mm Textile：30.5 ± 0.05mm Gear position Pressurization, neutral, return Features 1. Using flow switch, and can switch to different speed of pressurization 2. Equipped with a 7-inch touch screen, and show real-time pressure and bursting time 3. Data exportable to USB Dimension 53 x 33 x 58 cm Weight 60 kg Power Single phase 110~240VAC，5A
