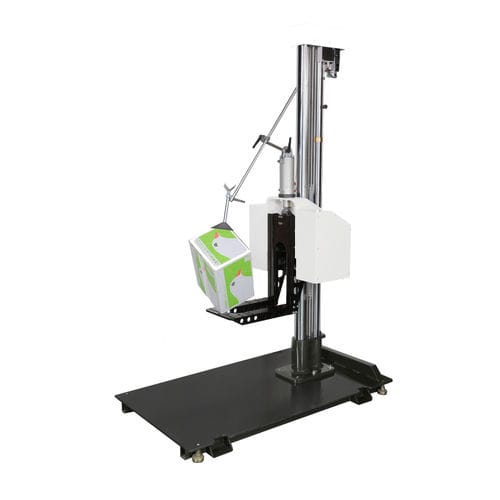

Impact testing machine QC-113A

for cardboard boxesfor packagingfor the packaging industry

This tester is driven by a pneumatic cylinder controlling a single wing structure. It only takes a small space to operate and is ideally suited for testing the impact of packaging products such as cartons, luggage cases, suitcases, electric equipment and related accessories, etc. It can simulate packaging damage during transportation. The test result serves as a safety basis for packaged goods in shipping process or as safety evaluation of goods that suffer drop impact when in use. Key words: Drop Tester, Drop Test, Box Dropping, Falling Tester, Falling Test Specifications Testing Height 300~1300cm 300~1800mm Moving speed 2000 mm/min Plate for holding 270 x 470 mm (W x D) Max. Load of Dropping platform 60 kg Max. Allowance of testing package 800 x 800 x 800 mm Dropping method Electric button type - pneumatic cylinder control Power supply Single Phase 220V，50/60HZ，8A Dimension 130cm：85 x 150 x 230 cm 180cm：85 x 150 x 280 cm Weight (without based) 130cm：225kg 180cm：250kg Based Area Standard：85 x 150 cm Optional： 1. 120 x 150 cm 2. 200 x 150 cm 3. 120 x 180 cm 4. As customer indicated Based Weight 85 x150 cm：135 kg 120x150 cm：180kg 200x150 cm：420 kg 120x180 cm：215kg
