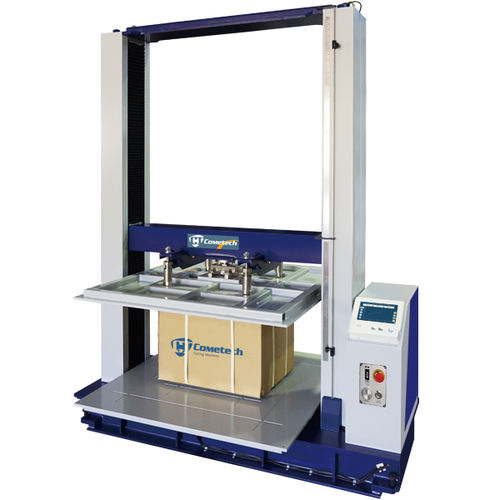

Compression testing machine QC-121M1F

for paperfor packagingfor the packaging industry

QC-121M1F tests the compression capacity of large packaging material such as cartons, foams or styrofoam, etc. The tester simulates a testing condition similar to logistics and storaging industry in which cartons are applied to measure its capacity and deformation against compression. QC-121M1F measures the accurate force using evenly distributed sensors; the upper platen can be fixed or versatile depending on test requirement. The software is capable of several testing patterns such as basic compression, constant load compression and dynamic load compression. The test results are precisely and instantly presented by distinct analysis and test graph. Key words: Box compression, Box test, Packaging test, Compression tester, Compression test, Box compression test Specifications Model A/B/C/D Test Space A：100 x 100 x 120 cm B：120 x 120 x 120 cm C：100 x 100 x 120 cm D：120 x 120 x 120 cm Max Capacity A：2,000kg(20kN) B：2,000kg(20kN) C：5,000kg(50kN) D：5,000kg(50kN) Platen Type Fixed/ U-joint , Adjustable Units Force：gf, kgf, lbf, N, kN, ozf, tonf(SI), ton(long), tonf(short) Pressure：Kpa, Mpa, psi, bar, mm-Aq, mm-Hg Force Resolution 31 bits Force Precision 1/100,000 Stroke Resolution 0.0001mm Test Speed 0.2~300 mm/min Hardware Protection Upper/ Lower limit, Emergency stop button Power Source Servo motor Connect to PC thru RJ45(TCP/IP) Power Phase Single Phase 200~240VAC，5A Dimension A：156 x 100 x 178 cm B：156 x 120 x 183 cm C：176 x 100 x 178 cm D：176 x 120 x 183 cm Weight A:800 kg/B:900 kg/C:850 kg/D:950 kg
