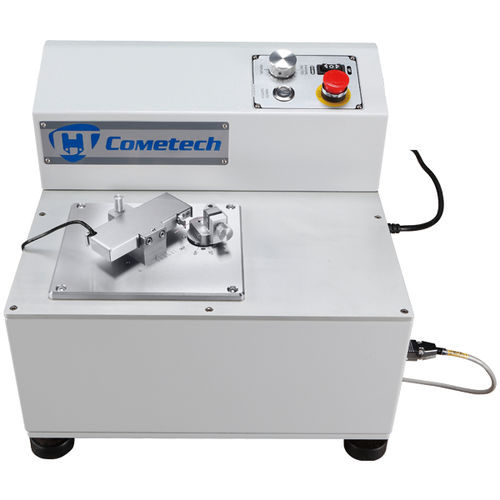

Bending testing machine QC-643A

for plasticsfor paperfor packaging

This tester machine is design to test the stiffness of small and thin hair-like materials that are semi-rigid. (Ex: bristles, soft sheets, etc.) The tester bends the sample material and measures the force to define the materials stiffness. Recoil force of the hair or other sample material is measured by bending. Based on this characteristic, the length can be set at 1、5、10、15、20、25、50mm distances. The angle of the test can also be adjusted with range of 1-90゜Choose suitable distance and angle base on the selected hair to get maximum force value after bending. Key Words:Hair Stiffness, Hair Softness, Apparatus, Test Machine, Quality Control Tester, Test Equipment, Crease & Stiffness Tester Conform to Standards BS 6965 BS 3748 ISO 2493: 1992 Industry Plastic, Paper, Packaging Specifications Test Capacity Max. 500g Test Angle 1-90° Adjustable Test Length 1、5、10、15、20、25、50mm Speed 5° ～100° / sec (Adjustable) Accessory Software Connection Dimension 350 x 400 x 325 mm Weight 20kg
