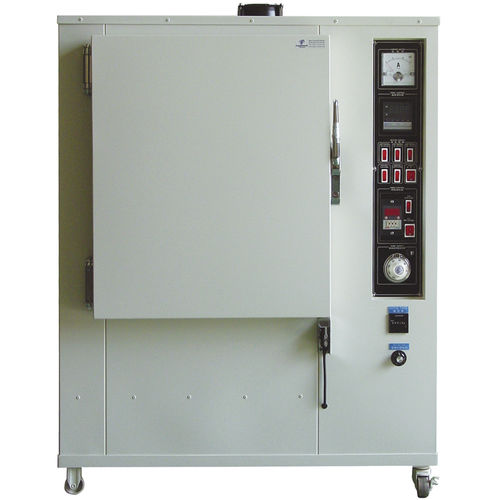

Environmental test chamber QC-609A

aginganti-yellowing

The QC-609A Discoloration Meter possesses oven, aging and anti-yellowing functions. A 300W UV lamp install inside the oven to simulate the fading or discoloring of sample caused by radiation of sunlight or inside high temperature containers during transportation. The QC-609B Discoloration Meter use two 15W light pipes as test irradiation source to see sample change condition through Ultraviolet ray. Key words:Discoloration Test, Discoloration Test Standard, Discoloration Level, Environmental Testing Machine, Environmental Test, Environmental Tester Industry Plastic Specifications Model QC-609A Inner Chamber Size 50×50×60 cm (W×D×H) Temperature range Normal +5℃ ~ 260℃ (Generally 50℃) Control method Electric Digital temperature controller (With dual thermo protector) Temperature display 0.1℃ Timer 0~999Hours, manual setting, digital display, automatically stop heating Rotary speed of turning table 3 r.p.m. , (Adjustable) UV irradiance leve Type of Bulb OSRAM 300W. With counter for bulb’s life. Life cycle for each bulb is about 1,000hours. Accessories Two pieces of shelf. Height adjustable Internal material SUS #304 Stainless Steel Outer material : Professional Pre-painting Dimension 85×70×128cm (W×D×H) Voltage Single phase, 220V/50Hz or 60Hz Weight 100 kg Attachment One Warranty card, one instruction manual.
