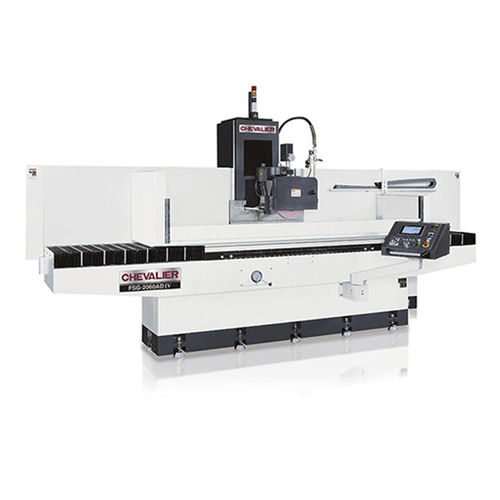

Surface grinding machine FSG-2040
column typeNCautomatic

Add to favorites

Compare this product

Characteristics

Type: surface
Structure: column type
Control type: NC, automatic
Number of axes: 3-axis
Other characteristics: high-precision, with touch screen
Spindle speed: 1,450 rpm, 1,750 rpm
(9,111 rad.min-1, 10,996 rad.min-1)
Power: 11 W
(0.01 hp)

Description

Programmable controlled grinding machine Precision spindle and rigid elevating elevating guideways Automatic wheel dressing with compensation (opt.) Completely supported guideways Rigid construction Crossfeed stroke setting AC servo vertical drive Crossfeed speed control Optional Machine Lamp Diamond Dresser Wheel Flange Electromagnetic Chuck Parallel Dressing Attachment (Hydraulic Type) Overwheel Parallel Dresser With Automatic Dress Compensation Wheelhead Mounted Automatic Rotary Diamond Dresser With Auto Wheel Dressing Compensation Balancing Stand With Levelling Bubble/ Balancing Stand (Roller type) Coolant System With Auto Paper Feeding Device (With 1 Roll Of Paper) Coolant System With Auto Paper Feeding Device & Magnetic Separator (With 1 Roll Of Paper) Water Baffle Chuck Controller Spindle Motor Crossfeed Ballscrew Hydraulic Temperature Regulator Frequency Converter Other dimensions on request Specification: Touch Screen Monitor 3-Axis Fully Automatic Auto Dressing and Compensation (Optional) Elevation is driven by Servo Motor Precisely Scraped Turcite-B on X axis and Z-Axis Spindle Power: up to 15HP, Greater Spindle HP Available
