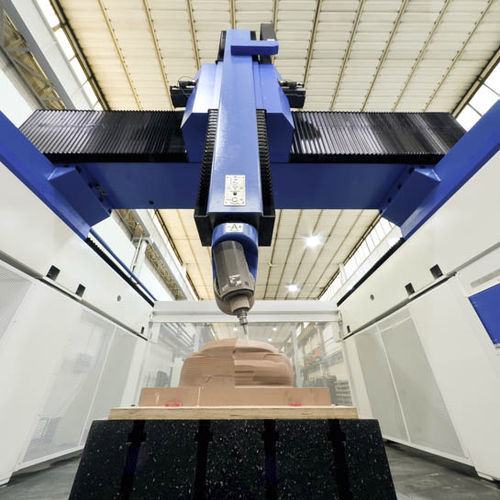

5-axis CNC machining center LABORWINDverticalbridgefor aluminum
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- vertical
- Structure
- bridge
- Machined material
- for aluminum, for composites, for wood, for plastics, for resin
- Associated functions
- milling, drilling
- Applications
- for molds, for large workpieces, for the mold industry, for aeronautics
- Other characteristics
- precision, tilting-head, mobile
- X travel
Max.: 50,000 mm
(1,968.5 in)Min.: 6,000 mm
(236.22 in)- Y travel
Max.: 8,500 mm
(334.65 in)Min.: 4,000 mm
(157.48 in)- Z travel
Max.: 4,500 mm
(177.17 in)Min.: 1,200 mm
(47.24 in)- Rotational speed
Max.: 30,000 rpm
(188,496 rad.min-1)Min.: 12,000 rpm
(75,398 rad.min-1)- Power
Max.: 30 kW
(40.79 hp)Min.: 22 kW
(29.91 hp)- Work feed X-axis
80 m/min
- Work feed Y-axis
80 m/min
- Work feed Z-axis
40 m/min
Description
LaborWind is the family of machining centres designed for those applications requiring the biggest working fields, especially for the vertical “Z” axis.
The mobile crossbeam, “suspended” on lateral steel or reinforced concrete structures, allows to cover very large working areas without overload the basic structure of the machine. Available with various spindle power and tool magazine configurations, with longer longitudinal axis strokes versions the machine can also be supplied with double mobile crossbeam and independent working unit, thus to double the production capacity.
LaborWind is the solution for the machining of parts and models of wind turbines, but also an alternative option for marine applications.
