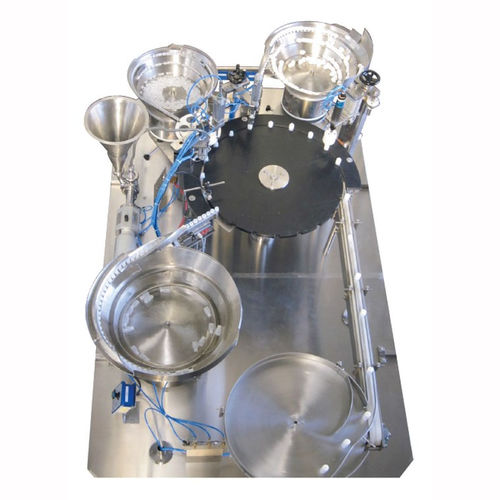

Automatic filling machine RAF 60

bottlefor liquid productsvolumetric

The machine is suitable for the automatic filling of vials containers for liquid essences, dense and dense seeds . Empty containers are placed within a vibrating system where they are distributed and conducted within a rotary star with step by step advancement driven by a brushless motor. The star leads the containers under the dosing station of the volumetric type via pneumatic dosing unit for liquid products, dense and dense seeds. Subsequently, the star advances under the station of application of undercaps which are conducted via a further plant in vibration and a star with actuator on the filled containers and applied on them by means of a piston applicator. In the next station, always with a vibrating system, they are conducted and places external caps and screwed by means of a pneumatic motor The filled and closed containers are conducted by the star on a transport tape and up to a plate of accumulation. The automatic operation of the unit and secured via PLC, which ensures the complete automation and control of the phases of the system. The machine is composed of the following parts: • stainless steel AISI 304 Basic Structure • rotary Stella with advancing step by step driven by a brushless motor • Plant vibration empty containers • dosing station by means of volumetric pneumatic dispenser for liquid products, semi liquids and dense • Vibration System for under caps • centering under cap with star actuator and piston applicator system • Vibration System for cap and piston applicator • screwing cap station • Output Nastrino • accumulation Plate
