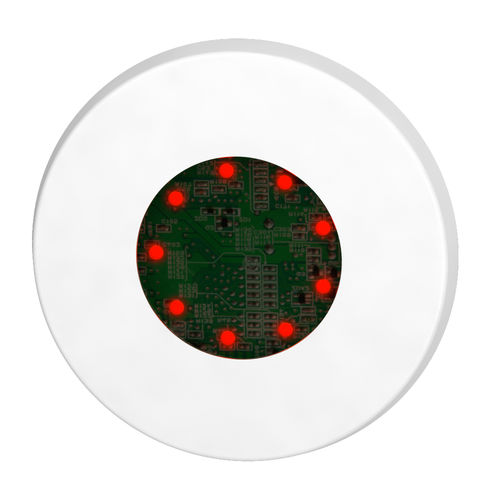

Touch switch KB100A

single-poleilluminatedelectromechanical

Capacitive technology luminous bicolor touch control button 250 VAC lighting switch in the premises 24 VDC machine control Request for stop/opening for public transport • Number of cycles: 100 million at 200 mA • Standard activation distance: 0 mm • Electrical contact KB100A: 1 RT 1700 VA/250V • Electrical contact KB100M: 1 NO, 1 NO+1NF, 8A/250V • Electrical contact KB100M: 1 PNP NO, 400mA/24V • Selectable features KB100A and KB100M: bistable, monostable, deferred stop (90s timer), delayed start (350ms). Other value on request. • Function details:  • ON/ON = momentary with fraud protection The action is canceled if the finger or organic material is present longer than 5s • ON/OFF = bistable. One pulse switches the contacts and another pulse places the contacts at rest • ON/duration/OFF = delayed stop 90s "timer" feature (other value on request) • Offset ON = delayed start. To confirm the request the button must be held for 350ms (other values on request) • Indication by LED ring offset effect: • KB100A: white or amber color (other on request) • KB100M: green and red color • KB100TR: green and red color • Bicolor LED indication by external control: version "OL" • Attachment 1: recessed box for plaster panel (2 D3 screws) • Attachment 2: panel by invisible screwing (2 to 6 D3 screws) • Material: TR90UV • Food contact: yes • Resistance to washing: yes • Anti-vandalism: yes • Electrical connection: 1m cable or 1.5mm² connector without screws • KB100A • Water resistance: IP 67 with peripheral silicone seal
