Hierarchical RFID 8 access control zones, 250 badges

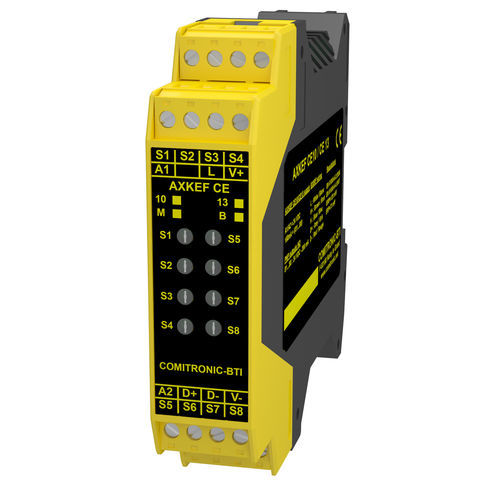

22.5mm DIN rail enclosure with removable terminals
No software or PC configuration
8 combinable outputs
Life cycle: 20 years
Max activation distance: up to 45 mm
Contact: 8 x 200 mA PNP for 8-bit format
Detection encoding: 16 million
Indicator: 8 LEDs indicating the pathways activated
Action: Momentary (ref + M), bistable (ref + B), timed (ref + MKT)
Mounting: symmetrical DIN 35mm rail after DIN 50022
Mounting: IP 54 electrical enclosure
Material: PA6
Electrical connection: Maximum 14 AWG (2.08 mm²)
Sealing: IP 67
Temperature: -15 °C to +60 °C
Marking: label + serial number for traceability
Option: badge nail, screw, plate screw, key chain, card ... etc.
