RFID module AXKEF CE13

RFID module
RFID module
Add to favorites
Compare this product


Description

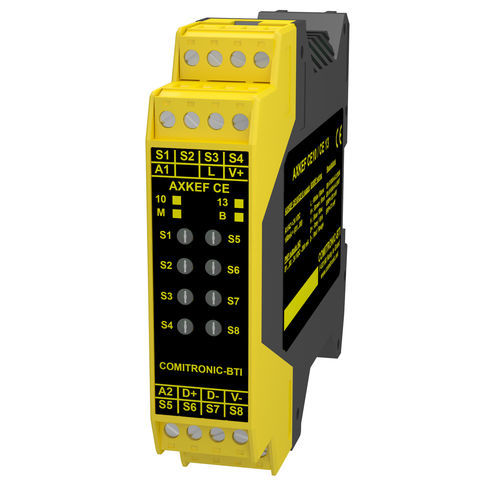

RFID tag reader with 8-bit outputs for PLC 22.5mm DIN rail enclosure with removable terminals Economy of cabling (8 outputs for 255 functions) No programming Life cycle: 20 years Max activation distance: up to 45 mm Contact: 8 x 200 m APNP for 8-bit format Detection encoding: 16 million Indicator: 8 LEDs indicating the pathways activated Reset: no Mounting: symmetrical DIN 35mm rail after DIN 50022 Mounting: IP 54 electrical enclosure Material: PA6 Electrical connection: Maximum 14 AWG (2.08 mm²) Temperature: -15 °C to +60 °C Marking: label + serial number for traceability Option: badge nail, screw, plate screw, key chain, card ... etc.   Application examples : - Secured control of robotic tools or machines to avoid errors and incompatibilities. - Keyed to blend Bigbag, tank, container contents - Automatic sorting of products in harsh environments, without color or brightness or shape constraint - Monitoring of batches (sleds, pallets, trays ... etc.) - Production monitoring - Selection of recipes for ready meals - Operating mode and selective acknowledgment - Tracking the authorization of operators in maintenance, production and regulation - Access control store - Replacement of a switch/selector in humid, dirty, aseptic environments

Catalogs

Catalog RFID
Catalog RFID
16 Pages
