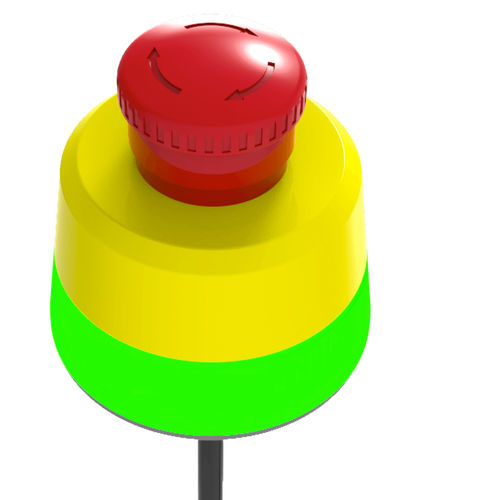

Mushroom push-button switch CC80

emergency stopIP65LED-illuminated

ILLUMINATED EMERGENCY STOP BUTTON 80 MM DIAMETER Combine Emergency stop and Indicator function 40mm mushroom button, TUV approval, safe and reliable High visible and cost effective, easy to mount Power supply : DC 12~30V Maximum current : 150mA/12V; 80mA/24V; 60mA/30V Button : Insulation resistance : >100Mohm Shock resistance voltage : 2500V Life cycle management >250,000 Hours B10d : 250 000 Number of hours of use per day (Hop) : 16h Number of days of use per year : (Dop) : 320 Days Time between 2 consecutive starts (Tc) : 3h either 10800 secondes Calculation of the MTTFd : Nop = (Hop*Dop*3600)/Tc MTTFd = B10d/(0.1*Nop) = 1465 years Contact NC Y W-E01 IDEC YM1B-V TÜV / UL / CE / CCC 12 à 30 VDC / 2A Indicator color : Fixed green & Flashing red Other colours available as an option : Red, Green, Yellow (fixed or flashing version) LED Flashing frequency : 1.6HZ à 50% duty cycle Input efficiency : >7.2V Input impedance 10K Electrical : Protection against overcurrents, overvoltages, connection reversals IP : IEC IP65 Connection : 1 meter cable ou Connector M12 male QD with cable 30 cm option Work environment : - 20 ° C to 50 ° C ( - 4 ° F to 122 ° F) Humidity : 95% at 50 ° C Materal : Button and Base : ABS (70%) + Polycarbonate (30%) Coverage : Polycarbonate Vibration resistance : 10Hz to 500Hz, amplitude 0.35mm acceleration 50m/s2 Shock resistance : 150 m / s2
