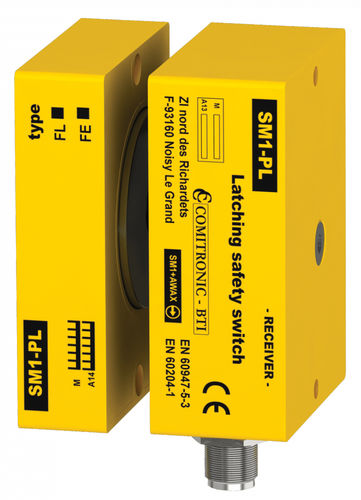

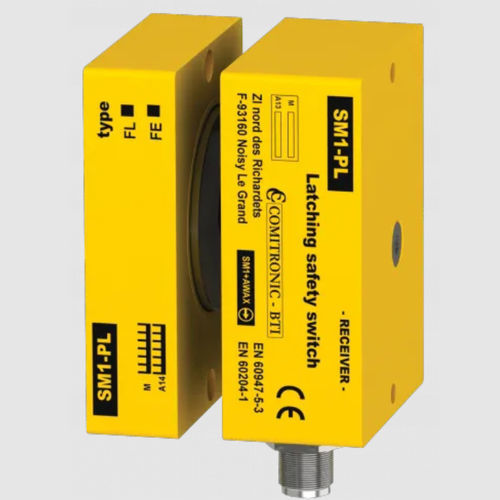

Electromagnetic locking device SM1 series

Electromagnetic safety lock control with 580 N force No power or under-voltage locking on machine casings Machine protection closing control for harsh environments 100% stainless steel version available   • Level of performance with AWAX controller: up to PL = e • Safety category: up to 4 with AWAX controller or PLC SIL 3 • Time before dangerous failure: MTTFd = 100 years • Maximum detection activation distance: 2 mm • Holding force: up to 580 N • Safety contacts/diagnostics: 2 x NO 250mA max/24V redundant and • 1 x PNP 250mA • Detection encoding: mono-code inviolable • Indicator: LED • Reset: automatic or controlled (ref. + OP) • Attachment: 4 M4 screws (inviolable on new generation and optional ref.: BH4) • Mounting position: 1 • Casing material: INOX316L mirror polished (OX version) or POLYCARBONATE (PL version) • Suction cup material: INOX (SM1 + OX) or steel (SM1 + PL-AC) • Electrical connection: the M12 metal base will be replaced with a 50cm PUR cord with an M12 connector on the new generation • Water resistance: IP 67/68 • Temperature: -25°C to +50°C. • Marking: laser engraving with mechanically punched serial number for permanent traceability (OX version) or screen printed serial number for traceability (PL version)
