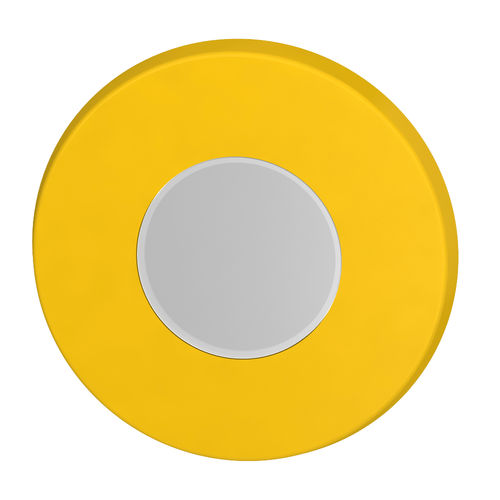

Touch switch KOB 110T series

capacitivesingle-poleIP67

Dual technology optical/capacitive luminous touch secure stop button Activation by contact, wide range of detectable material Great ease of detection anywhere on the button Bistable function with timed lock release • Service life before dangerous failure: 40 years • Activation distance: on contact • Electrical contact: 2 PNP NF 200mA (NO powered off) • Detection of short circuit in the wires: yes • Detection of abnormal function: yes • Indication mode "on": solid red LED ring • Indication mode "off": flashing red LED ring • Indication mode "error": timed offset red LED ring • Trim color: red • Opal green color enables lighting of the ring • Attachment: 51mm bore and 2 to 6 D3 invisible screws (not included) • Very low visible thickness • Mounting position: 1 • Material TR90UV • Food contact: yes • Resistance to washing: yes • Anti-vandalism: yes with the new 2015 generation • Electrical connection: 1.5mm² screwless connector without • Water resistance: IP 67 with peripheral silicone seal • Temperature: -25°C to +60°C • Printing: screen printing for the reference on the back of the product
