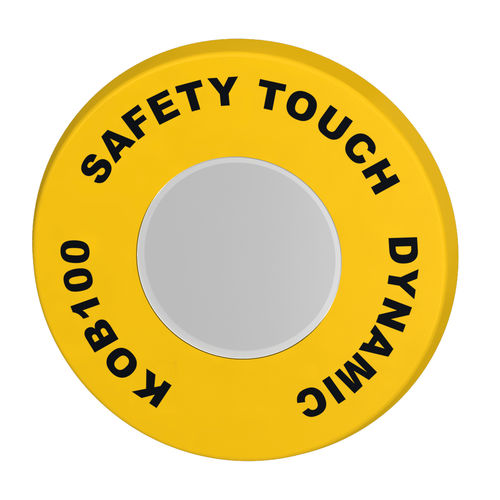

Touch switch KOB 101T

capacitivesingle-poleSIL 3

Two-hand dual-technology touch control button for enhanced security Dynamic detection of approaching hand Fraud reduction system and MSD reduction Capacitive and optical technology touch button • Performance level with COM3C controller: PL = e • Safety category with COM3C: IIIC (EN 574), 4 (ISO 13849-1) • 'Failsafe' level with COM3C: SIL 3 • Time before dangerous failure: MTTFd = 100 years • Activation distance: on touch (0 force = MSD reduction) • Safety contacts: 1 x PNP NO/50mA OSSD and 1 x PNP NF/50mA OSSD • Diagnostics: fraud, simultaneity, short-circuiting of contacts with multi-function illuminated ring • Reset: automatic with two buttons correctly activated • Attachment: Attachment: 51mm bore and 2 to 6 invisible D3 screws (not included) • Mounting position: 1 • Material: TR90UV yellow • Electrical connection: 6-way screwless push terminal 1.5mm² • Water resistance: IP 67 with silicone seal on the trim • Temperature: -25°C to +60°C • Marking: screen printed + serial no. for traceability
