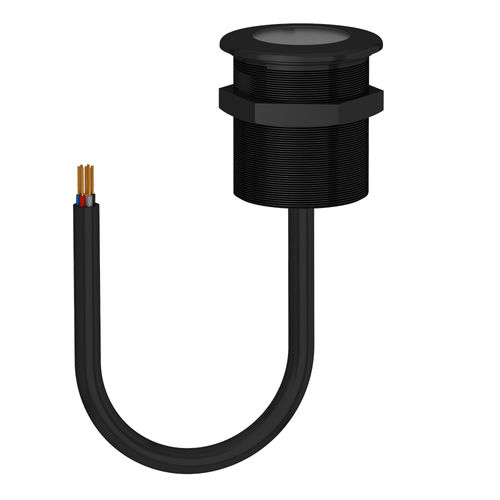

Steady indicator light V22 series

LEDpanel-mountIP67

Two-color LED indicators and indicator light Replaces incandescent lamp indicators Two-tone indicators for space saving Lighting of dark areas for machines or electrical cabinets • Service life: 50,000 hours • Light type V22: two-color high brightness LED 360 mcd • Light type V30: two-color high brightness LED 360 mcd • Lighting colour: red/green or blue/yellow • Body colour: black, grey, white, red, red, green, opal, yellow • Mounting V22: M22 thread with nut and seal provided • Mounting V30: M30 thread with nut and seal provided • Mounting position: 1 • Material TR90UV • Food contact: yes • Washing resistance: yes • Vandal resistant: yes • Electrical connection V22/V30: screwless connector 1.5mm² • Waterproofing DC version: IP 67 and IP 69K • Waterproofing CV version: IP 67 and IP 69K (front part only) • Temperature: -20 °C to +55 °C
