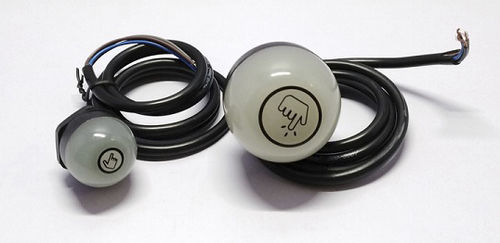

Non-threaded knob CC50T

mushroompolycarbonateindicator

High visible, R,G,B or R,Y,G indicates three status , Job light Sense light and Mis-pick light Easily actuated with bare hands or work gloves IO logic build in, IOD separate control, IB intelligent bus IEC IP69K ,suitable for harsh environments Power supply : DC 12V ~ 30V Each color : MAX<50mA @24V IO Model Output : Max Load : 150mA Output state saturation voltage : 2V(DC 10mA); 2.5V(DC150 mA) Non-output state leakage current: 7.2V, Input resistance 10K IB Communication bus : 38.4K Baud rate, 200m max transmission distance Protection : Over current/Over voltage protection; Reverse connection protection Material : Bases & covers: ABS(70%) +Polycarbonate (30%) Light segment : Polycarbonate Indicator color : IO Type : Job Light -Green;Sense+ Job -Amber;Mis-pick(Sense, no job) -Red IOD Type : Three colors can be controlled separately IB Type : Red, Green, Blue, Amber, Cyan, Pink, or custom control Connection : 4X0.3mm2 double insulated PVC cable or 6X0.25mm2 PVC cable Connection : 0.3m cable with M12 Male QD or 1 meter cable Working environment : -40 ° C to 50 ° C (? 40 ° F to 122 ° F) Humidity : 95% at 50 ° C IP Rating : IEC IP69K
