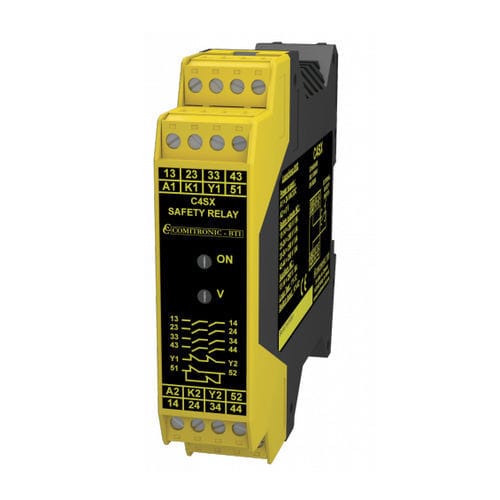

Security expansion module C4SXDIN railcompact-size
Add to favorites
Compare this product
Characteristics
- Options
- security
- Other characteristics
- DIN rail, compact-size
Description
Extension of safety lines
Add 4 power safety lines at 6A/250V with a safety PLC or control box without loss of Safety Class
Compact format 22.5 mm/removable terminals
Level of performance: PL = e
Safety category: 4
Safety Integrity Level: SIL 3
Cycle before dangerous failure: B10d=100,000 at 5A
Risk duration: 20 ms max.
Cable severing protection: yes (opening of safety lines)
Safety contacts/diagnostics: 4x NO 6A/250V redundant / 1x NF redundant in series (test) and 6A/250V parallel (information)
C4SX indicators: 2 LEDs
C5SX indicators: 2 LEDs
Reset: automatic
Number of inputs: 1 (C4SX) and 2 (C5SX)
Mounting: symmetrical DIN 35mm rail on DIN 50022
Mounting: IP 54 electrical box
Electrical connection: Maximum 14 AWG (2.08 mm²) / 250V minimum
Temperature: -20°C to +60°C
Compatible with OSSD output products
