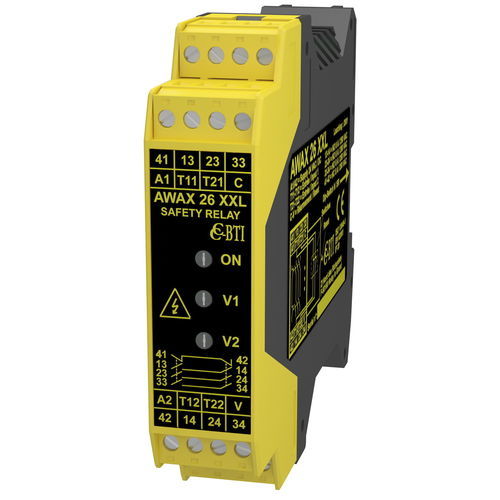

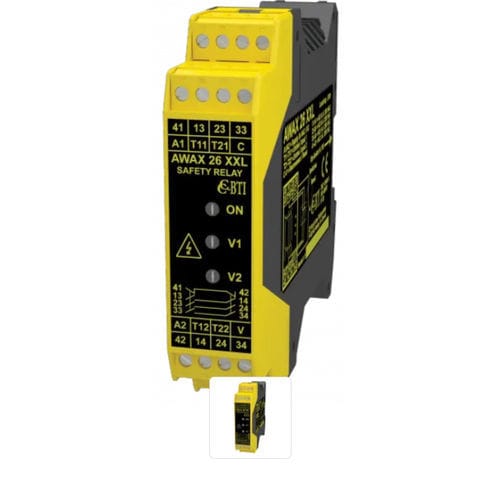

Safety relay AWAX 26XXL

3 NO1 NCemergency stop

Sensor controller on Acotom process / mechanical switches / emergency stops Output contacts 8A/250V Anti-gluing control of the reset button Ultra-fast "DLC" short-circuit check : Short-circuit detection in 2 µs, self-resetting Safety management in a compact 22.5 mm format 12V version for embedded applications Performance level with AWAX controller: PL = e Safety category: 4 Safety Integrity Level: SIL 3 AWAX26XXL : Safety/diagnostic contacts: 3x NO 8A/250V redundant / 1x NF 8A/250V serial (XXL version) or parallel (XXLP version) AWAX26XXLT6 : Safety/diagnostic contacts: 3x NO 6A/250V redundant / 1x NC 6A/250V redundant serial (XXL version) or parallel (XXLP version)   • Time before dangerous failure: MTTFd = 415 years • Cycle before dangerous failure: B10d=100,000 at 5A • Risk duration: 20 ms max. • Cable severing protection: yes (opening of safety lines) • Short-circuit and overload protection: yes, using DLC (opening of safety lines and current limiting in contacts) • Reaction 2 µs ultrafast • Indicators: 3 LEDs for diagnostics • Reset: configurable by dip-switch (SR=Automatic, N=manual) • Mounting: symmetrical DIN 35mm rail on DIN 50022 • Mounting: IP 20 electrical box • Electrical connection: Maximum 14 AWG (2.08 mm²) / 250V minimum • Temperature: -20°C to +60°C • Certification: TÜV Rheinland 01/205/5168/11 • UL 508 / C22.2 no.14 C-UL-US listed 34CB (file E214209)
