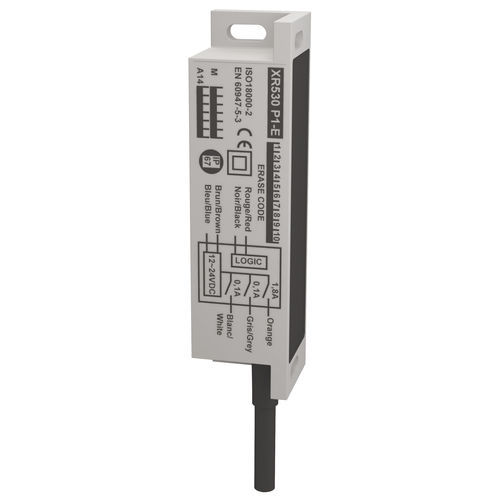

Corded RFID reader-writer XR530

with PC interface

Card access control with RFID encoding RFID sensor with 16 million codes Lock control and two alarm levels Programmable code through auto-learning (no software or PC) • Switching cycle: B10 = 1 million • Max activation distance: XR 530P up to 25 mm • Contact/diagnostics: 1 x 1.8A PNP timed 5s/2 x 200m APNP • Alarm 1 (120s failure to close) and 2 (30s breaking open) • Duration of alarms editable upon request (XR530P, P1 ... P10) • Detection encoding: 16 million • Indicator: LED indicates code recognition • Optional erasing card to reassign new codes • Encoding of geographic location: (base + E1 to E10) Reset : automatic • Attachment: 4 tamper-proof M4 screws (in base option: BH4) • Mounting position: 2 (double wall brackets) • Material: PA6 • Electrical Connection: 3, 6, 12m (UL2464 PVC) • Sealing: IP 67 • Temperature: -25 °C to +70 °C. • Marking: pad printing + serial number for traceability • Option: badge nail, screw, plate screw, key chain, card ... etc. • Application example: access to luxury showcases with lock control
