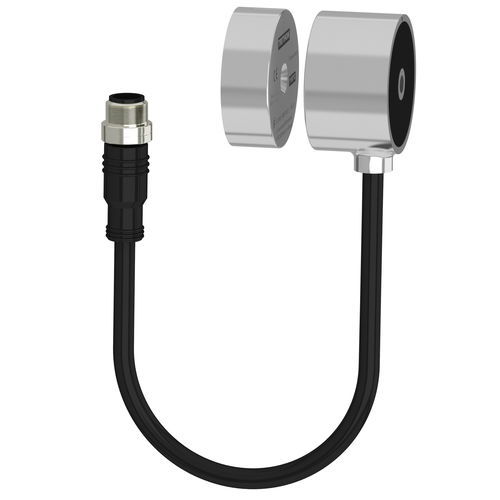

Safety sensor TRITHON series

Position control for doors / casings on dangerous machinery in harsh environments Contactless coded electronic sensor Total safety management with an AWAX controller High temperature Level of performance with AWAX controller: up to PL = e Safety category: up to 4 with an AWAX controller • Time before dangerous failure: MTTFd = 100 years • Max. activation distance: 7 mm, 1 mm hysteresis, rotation ± 30° • Safety contacts/diagnostics: 2 x NO 1A max/24V redundant and • 1 x PNP 1A auxiliary • Detection encoding: mono-code inviolable • Reset: automatic • Attachment: 2 central M4 screws not included; anti-rotation lugs provided • Mounting position: 1 • Material: INOX 316L mirror polished • Electrical connection: 50cm Ultra-soft silicone cord with M12 connector. • Water resistance: IP 69K • Operating temperature: -30°C to +110°C. • Peak temperature: -40°C to +130°C • Marking: laser engraving with mechanical punching of the serial number for permanent traceability
