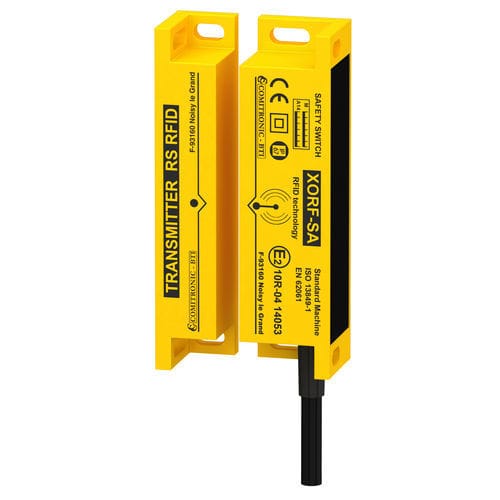

RFID switch XORFS

single-poleIP67door

Controls the position of security doors with RFID encoding for wheeled vehicles RFID sensor with 16 million codes Suitable for metallic environments Programmable code through auto-learning (no software or PC) Level of performance with AWAX controller: up to PL = e Safety category: up to 4 (EN 954-1) with AWAX controller Time to dangerous failure: MTTFd = 40 years • Max activation distance: up to 24 mm • Security contact/diagnostics: 2 x redundant NO 50mA/30V and • 1 x 50mA auxiliary PNP • Detection encoding: inviolable multicode • Indicator: LED indicates code recognition • Reset: automatic • Attachment: 4 tamper-proof M4 screws (in base option: BH4) • Mounting position: 2 (double wall brackets) • Material: PA6 • Electrical Connection: 50cm PUR cable with M12 connector • Sealing: IP 68 • Standing room temperature: -30 °C to +50 °C. • Storage temperature: -40 °C to +85 °C • Marking: pad printing + serial number for traceability • Certificate: E2 10R-04 14053 (UTAC) • ISO 7637-2 (Pulse 1, 2a, 2b, 3a, 3b, 4)
