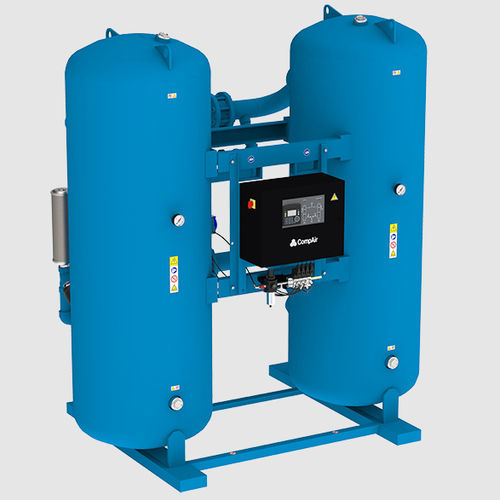

Desiccant compressed air dryer AX series

refrigeratedtwo-stage

The CompAir AX-Series uses twin desiccant towers and strategically positioned valves to dry the compressed air. The compressed air produced is thoroughly dried as it is directed through the on-line desiccant-filled tower of the dryer. As the desiccant in this tower adsorbs moisture from the air, the desiccant in the dryer’s offline tower is purged of moisture and readied for use. Advantages at a glance: High Reliability - proven technology used in thousands of applications and installations worldwide. Low Capital Investment - large range, available for precise sizing to suit your needs. High Air Quality - pre and post filter included, helping you to meet stringent air quality requirements. Energy Efficient - with the optional high efficiency Energy Management System (EMS) offers even greater efficiency. Standard features include: High Efficiency Pre Filter and Dust Filters IP54 electrical enclosure Digital controller Tower pressure gauges Colour change moisture indicator Optional features include: Energy Management System (EMS) with dew point display Fail-to-Shift alarm - Monitors the dryer sequencing functions to ensure proper dryer operation by sensing the pressure in each tower, sending an alarm in case of anomalies. Different tower vessels design code Stainless steel control air tubing Filter monitoring - Differential pressure switches installed on filter monitor performance. Display options include analog and digital -70˚C pressure dew point No air loss drain for filters with alarm Marine paint The above diagram shows how the heatless dryer diverts a portion of the dried compressed air to the off-line tower.
