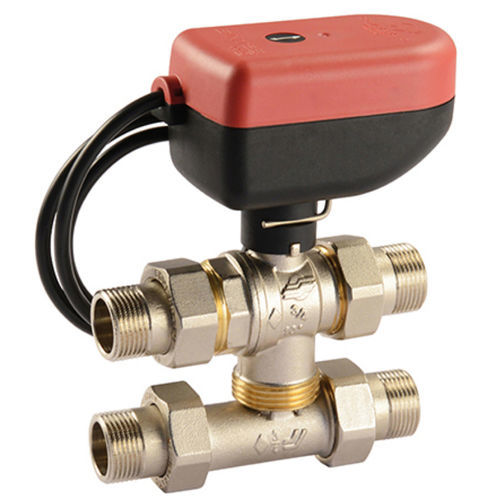

Bypass valve SR2221 seriesballelectrically-actuatedshut-off
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- electrically-actuated
- Function
- shut-off
- Media
- for water
- Body
- male-male, brass, IP54
- Applications
- heating, sanitary
- Other characteristics
- full-flow, bypass, motor-driven
- DN
15 mm, 20 mm, 25 mm
(0.591 in, 0.787 in, 0.984 in)- Pressure
16 bar
(232.1 psi)- Temperature
Max.: 160 °C
(320 °F)Min.: 5 °C
(41 °F)- Flow rate
16.3 m³/h, 29.5 m³/h, 43 m³/h
(575.63 ft³/h, 1,041.78 ft³/h, 1,518.53 ft³/h)
Description
SINTESI motorised valve – BY-PASS BRASS
ON-OFF functioning, with 1 extra free micro switch on opening
2 points control actuator with relay
Operating time: 45 sec for 90° rotation – 8Nm
BY-PASS BRASS ball valve with tangs, full bore
Fast push connection
