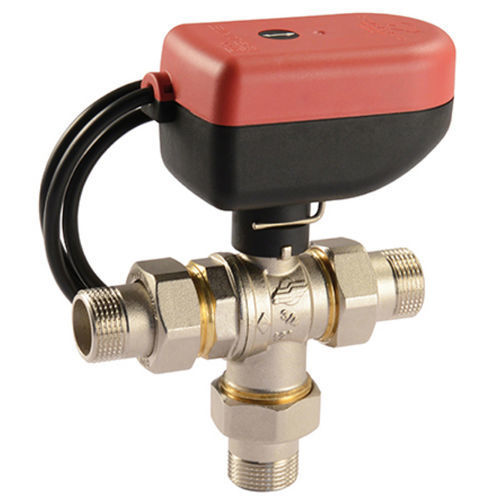

Motor-driven valve SR2221 seriesballelectrically-actuatedshut-off
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- electrically-actuated
- Function
- shut-off
- Media
- for water
- Body
- male, T, brass, IP54
- Applications
- heating, sanitary
- Number of channels
- 3-way
- Other characteristics
- full-flow, motor-driven
- DN
15 mm, 20 mm
(0.591 in, 0.787 in)- Pressure
16 bar
(232.1 psi)- Temperature
Min.: 5 °C
(41 °F)Max.: 160 °C
(320 °F)- Flow rate
6 m³/h, 11.5 m³/h, 18.3 m³/h
(211.89 ft³/h, 406.12 ft³/h, 646.26 ft³/h)
Description
SINTESI motorised valve – 3 way MMM BRASS
ON-OFF functioning, with 1 extra free micro switch on opening
2 points control actuator with relay
Operating time: 45 sec for 90° rotation – 8Nm
3-way MMM BRASS ball valve with tangs, full bore
Fast push connection
