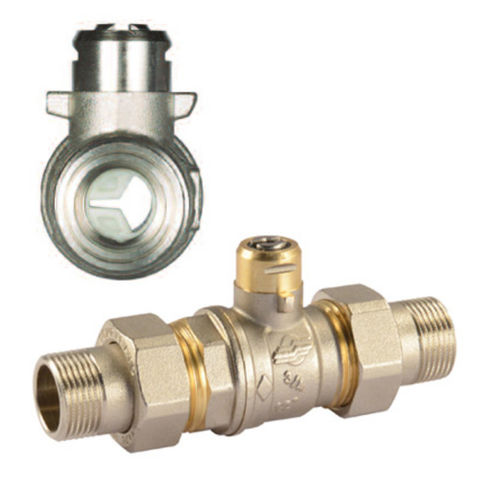

2-way valve SC2A2AK seriesballmanualregulating
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- manual
- Function
- mixing, regulating
- Body
- male-male, brass
- Number of channels
- 2-way
- Other characteristics
- full-flow
- DN
20 mm
(0.787 in)- Pressure
16 bar
(232.1 psi)- Temperature
Min.: 5 °C
(41 °F)Max.: 160 °C
(320 °F)- Flow rate
1 m³/h, 1.6 m³/h, 2.5 m³/h, 4 m³/h, 6.3 m³/h
(35.31 ft³/h, 56.5 ft³/h, 88.29 ft³/h, 141.26 ft³/h, 222.48 ft³/h)
Description
2 way MM Sintesi ball valve with REGULATION DISC
2-way MM BRASS with caps and tangs
With regulation disc (Kvs)
Catalogs
No catalogs are available for this product.
See all of Comparato Nello S.r.l.‘s catalogsOther Comparato Nello S.r.l. products
REGULATION, CONTROL AND BALANCING MOTORISED VALVE
