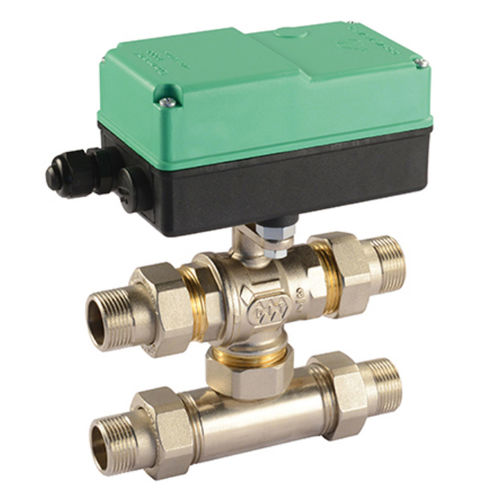

Ball valve DY222 serieselectrically-actuatedfor controldosing
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- electrically-actuated
- Function
- for control, dosing
- Body
- brass, IP65
- Applications
- heating, pump, actuator
- Other characteristics
- emergency, bypass, motor-driven
- DN
20 mm
(0.787 in)- Pressure
16 bar
(232.1 psi)- Temperature
Max.: 110 °C
(230 °F)Min.: 5 °C
(41 °F)- Flow rate
29.5 m³/h, 43 m³/h
(1,041.78 ft³/h, 1,518.53 ft³/h)
Description
ALL-IN-ONE actuator for 3 points without relay or 2 points with relay connection
Operating time: 35 sec for 90° rotation – 11Nm
