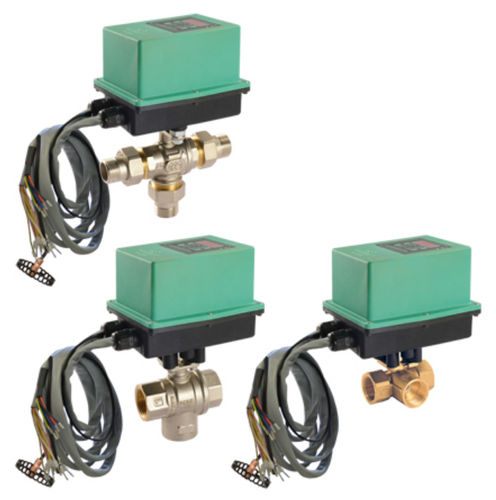

Ball valve DIAMIX PR
electrically-actuatedfor controlbrass

ball valve
ball valve
Add to favorites
Compare this product


Characteristics

Type
ball
Operation
electrically-actuated
Function
for control
Body
threaded, brass, IP67
Applications
heating
Number of channels
3-way
Other characteristics
vertical, thermal
DN

15 mm, 20 mm, 25 mm
(0.591 in, 0.787 in, 0.984 in)

Pressure

16 bar, 25 bar
(232.1 psi, 362.6 psi)

Temperature

Max.: 90 °C
(194 °F)

Min.: -10 °C
(14 °F)

Flow rate

6 m³/h, 11.5 m³/h, 18.3 m³/h
(211.89 ft³/h, 406.12 ft³/h, 646.26 ft³/h)

Description

For THERMAL REGULATION in UNDERFLOOR heating / cooling system Mixing thermoregulating actuator with electronics onboard Semiconductor temperature sensor 3-way BRASS ball valve, MMM with caps and tangs PN16 or FFF vertical/horizontal, full bore Diamix PR and Compamix PR electronic motorized valves can be used for the outlet température control in modem radiant heating and/or cooling Systems with floor. wall or ceiling radiant panels. Ail the régulation and control functions are integrated in only one product, eliminating the need for a control unit. Once installed in your System, you can select the operation mode of the motorized valve, enabling or disabling the various features. Fixed-point régulation: set-point températures for winter heating and summer cooling are set by means of the actuator key-board and display. The motorized valve is activated by the room thermostat and keeps the outlet température constant on the set-point value with an accuracy of +/- 1 °C. Climate heating régulation: the outlet température to the radiant System is automatically calculated by the software according to the external température detected by the relevant probe (optional). following programmable climatic curves. The set-point value is calculated by means of the following équation: Tsetpoint = - (Testerna ‘ C1) ♦ C2 where: Tsetpoint = température measured by the external probe. C1 = climatic curve slope. C2 = outlet température to the System when the external température is 0°C. Testerna must hâve a value within the [+25°C; +45°C] range.
