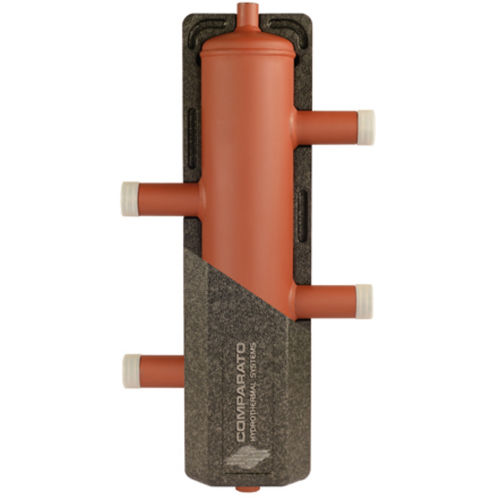

Compensator C series

Hydraulic compensator with additional functions of air and deposit separator for heating plants Carbon steel Insulation Out-of-standard products can be realised according to Customer’s requirements the purpose of the hydraulic compensator Diacom is to hydraulically separate the heating circuit and the utilization circuit, when they have different water flow needs. in general, it is necessary when the utilization circuit flow is variable and delivers values which are not compatible with the generator needs. moreover, it has to be used when an anti-condensation function is needed, because it raises the return flow temperature before it gets to the boiler inlet, mixing the outlet and the return flow. an additional feature of the hydraulic compensator Diacom secondary but not less important, is the creation of a slow vertical path aimed at helping the upflow air separation and the accumulation of dirt and sludge in the lower part, for an easier discharge to sewers The connection position has been carefully designed in order to ease the above mentioned functions. the circuit below ensures that the flow recommended by the manufacturer gets to the production circuit (heat generator) for a proper functioning. on the other hand, there will be variable flows in the utilization circuit, according to the number of outlet installed..
