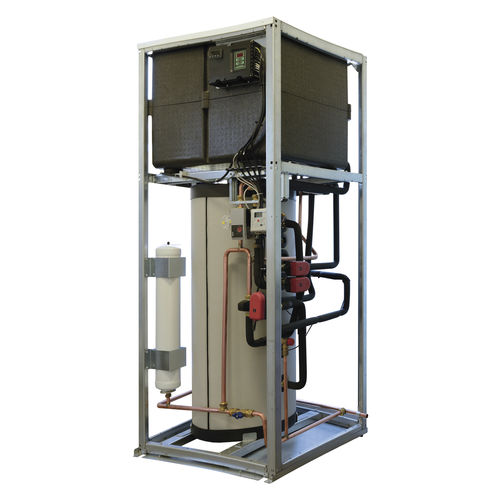

Heat metering system FUTURA HP

energysanitarydistribution

Futura HP is the innovative hydraulic interface unit with hybrid direct metering using the technology of the heat pumps in order to produce domestic hot water through accumulation. Winter season: heating of the housing unit and production of domestic hot water functions, by withdrawing thermal energy from the centralized distribution network. Energy is produced by a gas generator and sent to the network thanks to a termo-vector fluid. Summer season (function heating not requested): the production of domestic water is delegated to the heat pump integrated in the unit, with around 3 kW thermal. It is not necessary to absorb energy from the primary network, and therefore the centralized generator can be switched off with consequent environmental and economic benefits. The energetic dispersions due to the distribution are zeroed. The system improves the distribution output, one of the most critical aspects in the planning / management of this types of plants. Hydraulic interface unit with integrated heat pump for summer/winter commutation - Futura HP COMPONENTS Strainer Flow static limiter Inlet manual interception valves Outlet manual interception valves Accumulation tank Manual relief valve 7 bar safety valve AISI 304 expansion vessel AISI 316L immersion temperature probe Automatic release valve Sintesi 2-way ON/OFF motorised valve on sanitary circuit Sintesi 2-way ON/OFF motorised valve on primary circuit Electronics management box Energy meter, local reading / Energy meter, M-Bus reading Sanitary water meter, local reading / Sanitary water meter, M-Bus reading Thermostatic mixer on DHW outlet Plant pump Sintesi diverting motorised valve
