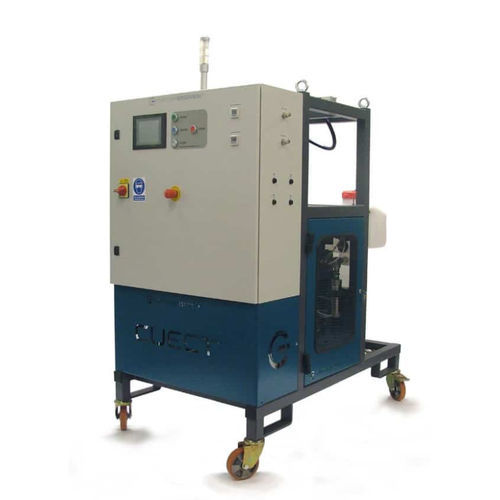

Hot runner system Ciject® Four

Based on the proven Ciject metering system, the Ciject Four uses a double pump system to provide optimum output plus a level of process security during the infusion (each pump/mix-head can be shut down and flushed if necessary during the infusion). The machine is designed for use with multiple in-mould pressure sensors (IMPS). The specification can be adapted and the control system can be configured to suit the particular parameters of the customer’s process. The Ciject Four is currently used to manufacture the worlds largest production infused yachts. Features include: -Fully enclosed cabinet housing pumping and control systems -Fully automatic mixing heads feeding into auto-manifold -Skid mounted with castors, fork lift and gantry lift points -Resin Inlets with cam-lock IBC connectors, large-bore in-line filters and in-line catalyst/hardener filters for easy cleaning without disconnection -Low volume/high velocity mix-head and auto-manifold flush system to ensure simple and quick cleaning with minimum solvent use. 20 Litre non-pressurised solvent tank -Unique catalyst/hardener monitoring system -Purpose designed resin and 316 Stainless Steel catalyst/hardener pumps for high reliability and simple maintenance. Modular for easy removal. -Seals designed and tested for service life in excess of 250,000 Kg of resin. -Two Independent Pump System - (2 resin & 2 catalyst/hardener) with the option to run independently -Mixed output up to 12Kg per min (dependant on resin viscosity) per pump. (note: total output from both pumps will depend on resin viscosity, air supply and downstream pipe-work restrictions)
