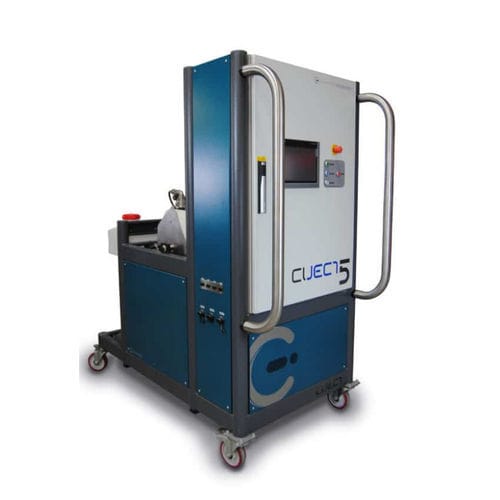

Hot runner system Ciject® Five

The Ciject® Five has been developed as an extension of the existing Ciject range of meter-mixing injection/infusion machines.Designed specifically for large scale infusion processing, the Ciject Five uses precision gear pumps to achieve output rates. The Ciject® Five is designed to achieve the following: -To replace manual resin mixing and handling in the infusion process. -To connect directly and cleanly to bulk material storage tanks. -To automatically pump and mix resin/hardener and maintain ratio accuracy over the entire output range. -To dispense the mixed resin directly into the infusion process. -To automatically control the rate of injection based on pressure feedback from the mould. -To enable the operator to have full control of the process with relevant checks, interlocks/alarms and feedback before and during the process. -To be easily, safely and efficiently flushed/cleaned after the process. -To enable real-time process data to be recorded. Significant Technical Benefits: -The ability to accurately control infusion pressure at the bag inlet point to a resolution of 100mbar whilst continually infusing at varying rate. Infusion can be controlled by either pressure (with a maximum flow rate limit), or, flow rate (with a maximum pressure limit). This fine control allows continuous infusion (not stop/start) without ever causing over-pressurisation (bag blistering). -Ratio control with continual PID control between A & B components and verification using a predicted/measured flow method. This methodology provides a high confidence level in both the operation of the pumps, flow meters and the final measured ratio.
