Flow testing machine XM-5101

manualairfor panels

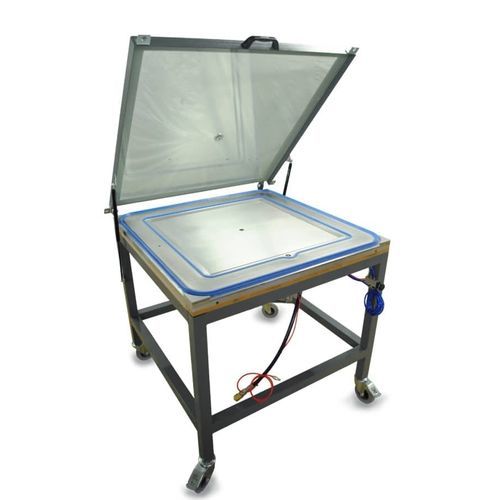

The lower mould is machined with a fixed cavity thickness which can be reduced by fitting optional shim-plates (cavity range of 0.5mm to 15mm) The upper mould consists of 19mm heat-toughened plate glass in a supporting steel framework. This allows full observation of the injection process The mould is clamped using vacuum only (VRTM) and is limited to use at low pressures up to 0.5 bar positive Injection is via a peripheral injection gate with a central vent. The lower mould includes oil/water heating channels or integral electrical heating with the appropriate insulation The upper mould is hinged and supported on gas-struts for ease of operation Air ejector system is included with standard specification Heating Options Heating: Oil/water heating is recommended for heating up to 150°c (see option 08) Electrical heating is recommended for heating up to 180°c. Two options are available for electrical heater control (see options 09 &10) Note: Protective insulation will be required for moulds operating above 50°c, option 11 will need to be specified if going above this temperature. Water/oil heating unit comprising: Supplied with stainless steel braided hoses Temperature control unit with digital display of the set and actual temperature with 1/10 degree to read in °C or °F Heating switchable in stages, from 3kW oil operation to 9kW water operation Heating capacity: 9kW water operation, switchable in stages 3,6,9 kW. 3kW oil operation Pump capacity: Motor 0.75 kW Power supply: 400V 50Hz 32A 3P+N+E
