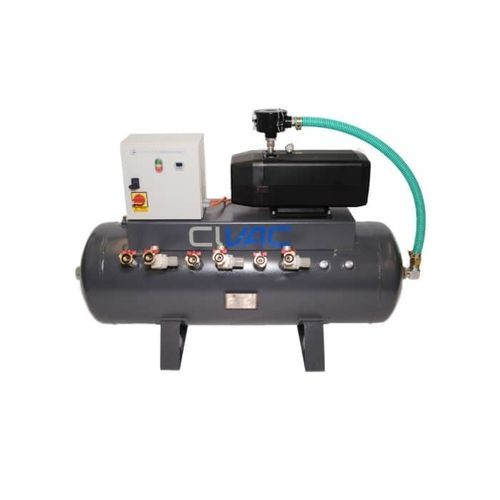

Lubricated vacuum system XV-0100 series

oil-freeindustrial

This type of vacuum pump is not adversely affected by air-admittance during the moulding process (‘rough’ vacuum) unlike oil-lubricated pumps which, despite achieving higher levels of vacuum, can vent oil vapour if used in this type of application. Available as stand-alone pumps or in a range of configurations. -High-output oil-free rotary vane vacuum pumps -Range of rated outputs with maximum vacuum level of 100-150mbar absolute -Fitted with Replaceable cartridge-filter to prevent dust and fibre entering the vacuum pump -Running time approx 4000-8000 hours between service intervals -Range of configurations available to suit single or multi-mould operations Three Phase Supply • Larger (25 and 40 m³/hr) pumps can be specified for single phase or three phase supply Simple ON/OFF Control • Start/stop DOL control with motor overload protection Full Switching Control • Digital display of vacuum gauge level • User adjustable digital switching unit to minimise pump operation whilst providing constant vacuum output • Automatically turns pump ON/OFF between pre-set minimum/maximum vacuum level settings • Control unit with MCB fusing, motor overload protection, and solid-state relay power switching Absolute Vacuum Gauge • Digital display to provide readout of vacuum level from atmospheric pressure down to zero mbar (absolute) Hours-Run Meter • Electronic counter to record the total pump use in hours • Allows accurate planning of service intervals Small Reservoir • 20 litre vacuum reservoir • Includes two vacuum take-offs • One vacuum take-off is fitted with a regulator, providing a constant downstream, vacuum independent of upstream variations
