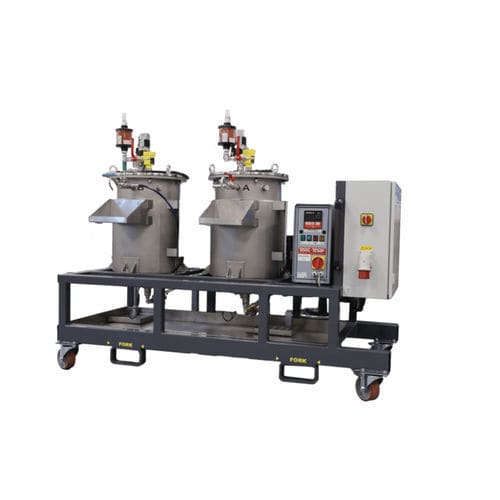

A range of material holding tanks that can be used with Ciject injection equipment.
The range includes:
-Resin holding tanks
-Hardener holding tanks
-Optional vacuum rated degassing tanks
-Heating options
-Stirrer options
Standard Tank Features
• Fabricated in 304 grade stainless steel
• Supporting legs with fixing points
• Reinforced flange
• Silicone lid seal
• Conical base
• 1” BSPP threaded outlet port
• 1/4” BSPP port in base
• 2 x 1/2” BSPP ports in sidewall (upper and lower)
• 1 x 1/2” BSPP ports in sidewall (spare)
• 1 x 1” BSPP port in sidewall (spare)
• 1 x 1” BSPP port in side wall
• Aluminium lid with removable 180mm Ø clear view port (Note: not available on the 25 litre tanks size)
• Through-lid vent/isolation ball valve (to control air admittance)
• 2 x cable/pipe-work mounting saddles on side of tank
Size options
• Tanks available in the following standard sizes: 25L, 50L, 100L, 150L, 250L
Vacuum rated option (degassing)
• Tanks specified to allow use with vacuum down to 1mb Abs.
• Includes heavier duty stainless steel tank and aluminium lid.
• Stainless Steel lid - supplied with a threaded port for customer to connect vacuum supply.
• Aliminium lid - supplied with a Geka fitting to connect vacuum supply.
Integral thermocouple Point option
• K Type thermocouple mounted through the base of the tank for accurate material temperature monitoring.
Level sensing option
• Lid Mounted microwave level sensing unit.
• Includes integral output display (showing level in centimetres)
