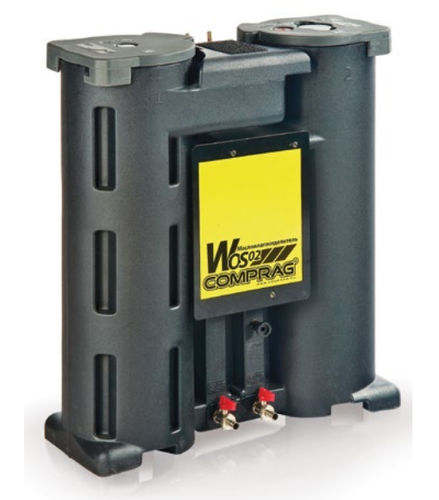

Oil separator WOS series

watercondensateprocess

WOS Series Process Condensate Separators are used to separate oils and other impurities from the water in the condensate lines. WOS separators efficiently separate oil through a multi-stage separation process. Features No power supply needed - works without electricity Reliable construction with no moving parts Easy to install, operate and maintain WOS Series Separators are available for compressed air lines with capacity up to 30 m3/min Air contains water vapor and atmospheric impurities, which, in the compression process, pass through the screw compressor unit. Air is mixed with the compressor oil needed for lubrication and cooling of the unit. After the compression process air is cooled in a compressor aftercooler, refrigeration dryer, etc. In the process of cooling the water vapor condenses, along with most of the impurities in the compressed air, including oil. Environmental regulations govern the degree of contamination of condensate discharge to sewer. WOS Process Condensate Separators are designed to separate oil and further impurities from the condensate. These contaminants can then be recycled. By using an advanced multi-stage separation process, WOS Separators are able to effectively separate the from the air-line condensate.
