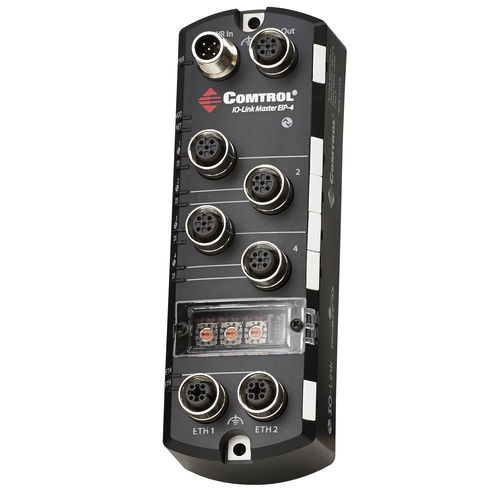

Communication gateway IO-Link Master 4-EIP

industrialTCPEthernet

IO-Link Master 4-EIPThe IO-Link Master features rugged IP67 housing with M12 connectors for harsh environments. This industrial IO-Link gateway has a wide operating temperature from 0° to 55°C.Part Number: 99570-8 Four port IO-Link Master to EtherNet/IP™ Rugged IP67 housing designed for harsh environments, M12 connectors allowing up to four sensor connections on one master block EtherNet/IP™ and Modbus TCP access to IO-Link process, event and service data EtherNet/IP™ Class 1 (Implicit) and Class 3 (Explicit) interfaces Write-to-Tag/File, Read-from-Tag/File PLC access to IO-Link ISDU blocks without complex programming Powerful web GUI for configuration and diagnostics, including: IO-Link device management using the IO-Link device manufacturers IODD file for easy device configuration, Automatic data storage (upload and download), Manual data storage (upload and download), Device validation and Data validation. Wide operating temperature (0° to +55°C) Multi-side LED visibility for device, network and port status Additional digital input on every port Works with PortVision DX IO-Link V1.0 and V1.1 compatibility IO-Link COM1, COM2 and COM3 support (230K baud rate) Slim-line machine-mount installation MultiLink™ – Simultaneously provides IO-Link device access to multiple controllers Quality of Services Agreement Accredited IO-Link Test Center
