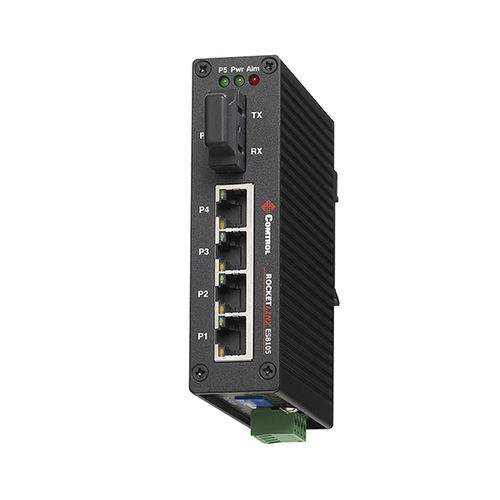

Unmanaged switch RocketLinx ES8105F-S-XT

5 portsfiber opticsDIN rail

RocketLinx ES8105F-S-XTUnmanaged industrial Ethernet switch with four 10/100BASE-TX ports and one Fast Ethernet fiber port, an aluminum metal case, DIN rail installation, extended temperature rating, and CID2 hazardous location certificationPart Number: 32028-9 Class I Division 2 certified for potentially hazardous locations Compact industrial Fast Ethernet fiber switch Four - 10/100BASE-TX ports and one Fast Ethernet (100BASE-FX) fiber port Single-Mode (30KM) 3.2Gbps Switch Fabric AC or DC power input (18 to 32VDC or 18 to 27VAC) DIN rail installation -40° to +75° C extended operating temperature for extreme environments Alarm relay output for port event notifications Aluminum metal case with IP31 grade protection for drip-proof and dustproof protection Supports 1.5KV Hi-Pot isolation protection Plug-and-play RoHS 2 compliant under CE UL listed The RocketLinx ES8105F-S-XT is a compact 4-port Fast Ethernet switch with one 100BASE-FX fiber port, featuring a 3.2Gbps switch fabric with Store and Forward technology and housed in a slim industrial enclosure to save rail or panel space in compact system designs. For installation in hazardous or industrial environments, the RocketLinx ES8105F-S-XT features an extended operating temperature range (-40° to 75° C), has CID2 certification, and provides IP31 protection to guard against dust and water. The ES8105F-S-XT is an unmanaged switch that requires no user setup and immediately starts operating as soon as power is applied for true “plug-and-play” operation. The RocketLinx ES8105F-S-XT supports 18 to 27VAC or 18 to 32VDC power inputs and provides built-in reverse power polarity protection.
