RS-232 device server 99480-0

RS422/RS485EthernetRJ45F

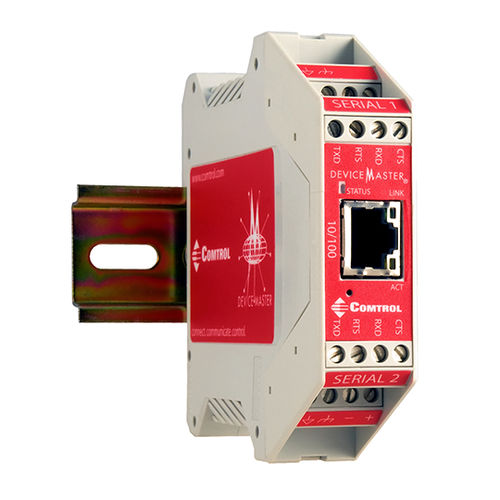

DeviceMaster ® DM-22022-Port serial device server with screw terminal connectors and one Ethernet port Product Name Change NotificationPart Number: 99480-0 RS-232/422/485 software selectable interfaces DM-2202 Ethernet device server features convenient DIN rail design Application compatibility via Windows and Linux certified drivers PortVision DX Screw terminal connections Surge protection for serial ports Wide input power range Configuration management via SSL & SSH SSL/TLS serial data stream encryption up to TLS 1.2 TLS 1.2 compliant when running SocketServer IPv6 support Real-time email event notification Real-time email event notification The DeviceMaster DM-2202 is a serial device server that can be used to network enable two serial devices on an Ethernet network. The product provides screw terminal connections for each serial port and supports RS-232, RS-422, RS-485 serial communications at standard baud rates from 300 bps to 230Kbps. A single RJ45 jack provides a 10/100 ethernet connection to the network. The product will accept power in the range of 5-30 volts DC through screw terminal connections. A 100-260VAC power supply is also available. Includes: DeviceMaster DM-2202
