RS-232 device server 99481-7

RS422/RS485EthernetRJ45F

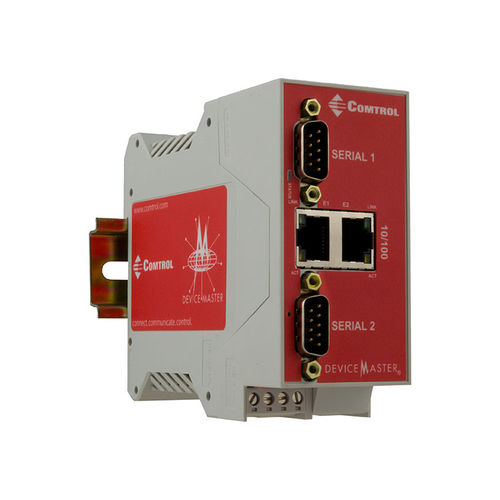

DeviceMaster ® DM-24022-Port serial device server with screw terminal connectors and dual Ethernet port Product Name Change NotificationPart Number: 99481-7 2-Port 2E Ethernet device server with proven DeviceMaster performance PortVision DX RS-232/422/485 software selectable interfaces Convenient DIN rail design Dual Ethernet ports for daisy-chaining devices Screw terminal connections Surge protection for serial ports Wide input power range Configuration management via SSL & SSH SSL/TLS serial data stream encryption up to TLS 1.2 TLS 1.2 compliant when running SocketServer IPv6 support Real-time email event notification The DeviceMaster ® DM-2402 is a serial device server that can be used to network enable two serial devices on an Ethernet network. The product provides screw terminal connections for each serial port and supports RS-232, RS-422, RS-485 serial communications at standard baud rates from 300 bps to 230Kbps. A single RJ45 jack provides a 10/100 ethernet connection to the network. The product will accept power in the range of 5-30 volts DC through screw terminal connections. A 100-260VAC power supply is also available. Includes: DeviceMaster ® DM-2402
