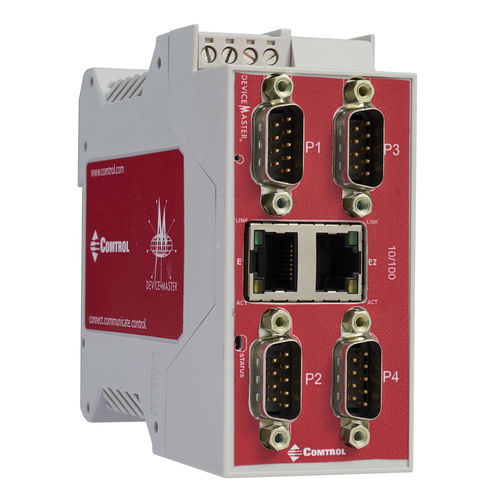

RS-232 device server 99610-1

RS422/RS485EthernetDB9M

DeviceMaster ® DM-23044-Port serial device server with DB9 connectors and dual Ethernet portsPart Number: 99610-1 Wide DC input voltage range (5-30 volts) Redundant power input for fail-safe power RS-232/422/485 software selectable interfaces DB9 male serial connectors PortVision DX Screw terminal power connector Dual Ethernet ports for daisy-chaining devices 25KV surge protection for serial ports Features DIN rail mounting Wide operating temperature range (-40º to 75º C) NEMA TS2 certified Configuration management via SSL & SSH SSL/TLS serial data stream encryption up to TLS 1.2 TLS 1.2 compliant when running SocketServer IPv6 support Real-time email event notification Software Controllable integrated 120Ω Termination Resistor for both the Transmit and Receive side in RS-422/485 Mode NEMA TS2 Certified UL Safety Certified The DeviceMaster DM-2304 serial device server can be used to network-enable four serial devices on any Ethernet network and is ideal for applications in: traffic and transportation, power utility, industrial automation, material handling and any project that requires serial-to-Ethernet communication with DIN rail-based equipment installations. Includes: DeviceMaster DM-2304 Device Loopback Plug
