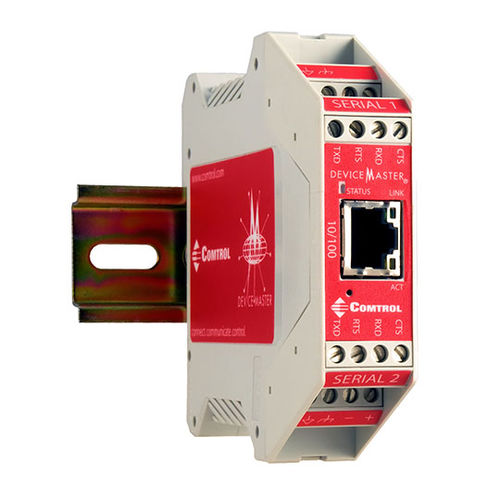

RS-232 device server DeviceMaster ® MOD-2202

RS422/RS485Modbus TCPEthernet

DeviceMaster ® MOD-2202Simultaneously connect both serial and Modbus devices to PLCs and/or applications. Product Name Change NotificationPart Number: 99532-6 The DeviceMaster Modbus model provides the following communication modes: Modbus/TCP to Serial or Ethernet TCP/IP Modbus/TCP to Modbus/RTU Modbus/TCP to raw serial data Modbus/RTU Device (Auto Locate and Auto Route) The easy-to-use configuration and Modbus/TCP protocol makes upgrades for plant floor global visibility faster and more economical than ever before. The DeviceMaster Modbus enables managers to leverage legacy devices and boost ROI, while reducing PLC programming and maintenance costs with simplified PLC interfaces. Highlights DIN-rail mounting and screw terminal connections Wide operating temperature ranges (-37º to 74º C) Surge protection for serial ports Variable power input (5-30VDC) Serial to Modbus/TCP Two serial ports with secure screw terminal connectors multiple units DualConnectPlus™ technology Secure SSL & SSH management The DeviceMaster MOD brings plant floor device visibility by enabling communication between factory floor devices and PLC controllers. The DeviceMaster MOD Industrial Ethernet gateway offers a solution that configures in minutes via the web and enables you to support the Modbus/TCP protocol for serial device to PLC connecions. RS-232, RS-422 or RS-485 software-selectable serial connections are supported via secure screw terminal connectors.
