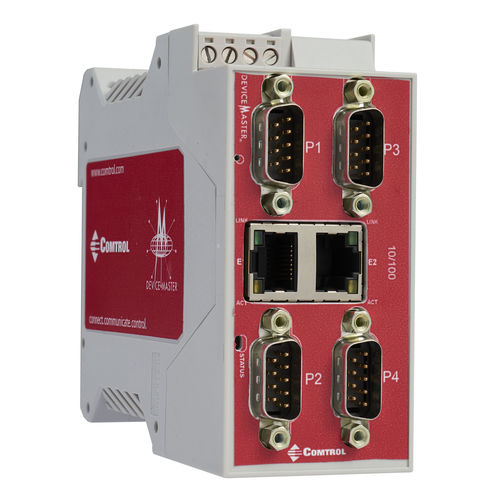

RS-232 device server DeviceMaster ® PNIO-2304
RS422/RS485EthernetDB9

RS-232 device server
RS-232 device server
RS-232 device server
RS-232 device server
Add to favorites
Compare this product


Characteristics

Bus
RS-232, RS422/RS485
Output bus
Ethernet, DB9
Other characteristics
industrial, DIN rail, 4 ports

Description

DeviceMaster ® PNIO-23044-Port serial device server with DB9 connectors and dual Ethernet portsPart Number: 99613-2 Wide DC input voltage range (5-30 volts) DIN-rail mounting and screw terminal connections for power Wide operating temperature ranges (-40º C to 75º C) Surge protection for serial ports Variable power input Support for PROFINET IO PROFINET Certification Dual Ethernet ports for daisy chaining network connections between multiple units Four serial ports with DB9 connectors SSL & SSH management, SSL serial data stream encryption Software Controllable integrated 120Ω Termination Resistor for both the Transmit and Receive side in RS-422/485 Mode NEMA TS2 Certified UL Safety Certified Only the DeviceMaster PNIO Industrial Ethernet gateway offers a solution that configures in minutes via the web, allowing you to support PROFINET IO. The DeviceMaster PNIO provides an RS-232, RS-422 or RS-485 software-selectable serial connection to an Industrial Ethernet network.
