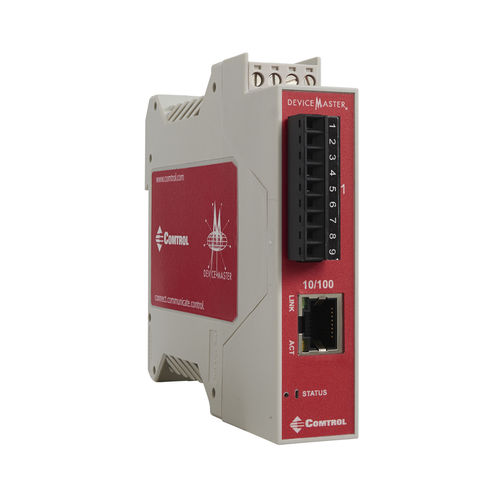

RS-232 device server DeviceMaster ® PNIO-2201

RS422/RS485ProfiNetEthernet

DeviceMaster ® PNIO-22011-Port serial device server with terminal block connectors and one Ethernet portPart Number: 99622-4 Wide DC input voltage range (5-30 volts) DIN-rail mounting and screw terminal connections Wide operating temperature range (-40º C to 75º C) Surge protection for the serial port Variable power input Support for PROFINET IO PROFINET Certification One serial port with secure screw terminal connectors SSL & SSH management, SSL serial data stream encryption Software Controllable integrated 120Ω Termination Resistor for both the Transmit and Receive side in RS-422/485 Mode NEMA TS2 Certified UL Safety Certified Only the DeviceMaster PNIO Industrial Ethernet gateway offers a solution that configures in minutes via the web, allowing you to support PROFINET IO. The DeviceMaster PNIO-2201 provides an RS-232, RS-422 or RS-485 software-selectable serial connection to an Industrial Ethernet network. The PNIO-2201 supports Siemens PLCs with extended PROFINET diagnostics, such as the SIMATIC S7-300, S7-400, S7-1200, S7-1500, and ET 200 CPUs.
