Communications converter RocketLinx ® MC5001

temperatureserialDIN rail

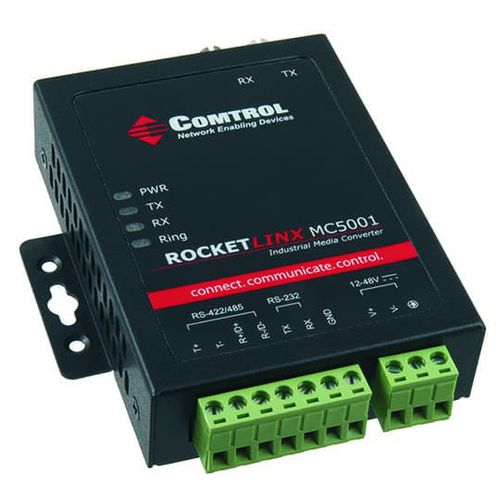

RocketLinx ® MC5001 Single-Mode Serial to FiberLooking for a converter for RS 232, 422 and 485? The RocketLinx MC5001 is designed to extend RS 232, RS 422 or RS 485 serial communications across a fiber media link using two converters and is a 1-port serial to fiber media converter. It features simple DIP switch configuration, an extended operating temperature range, and a large input voltage range.Cabling to the product is attached through direct wire screw terminal blocks for serial and power, and ST connectors for fiber connections. The product is encased in a rugged IP30 rated enclosure suitable for panel or DIN rail mounting.Part Number: 32000-5 3-in-1 serial fiber media converter to RS485/422/232 Easy DIP switch configuration to change serial modes Serial to fiber media converters supports Single-Mode 40KM Peer-to-Peer or serial fiber ring transmission mode for serial fiber ring communication Automatic baud rate detection, selection, and direction Baud rate of up to 921Kpbs High level immunity with 15KV ESD protection Two-way 120 ohm line terminator embedded Dual modes for power input, 24VAC (12 to 32VAC) or 24VDC(12 to 48VDC) with Polarity reverse protection -20° to 70°C operating temperature for hazardous environment applications
