8 ports multi-port serial communication card 30002-1

RS232PCI busRJ45

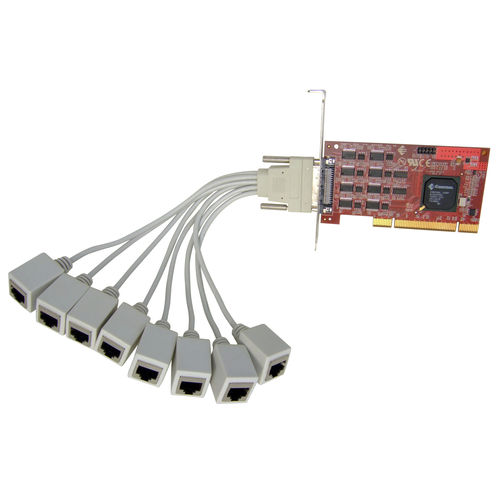

RocketPort ® INFINITY Octa RJ45PCI 8-Port serial card with RJ45 fanout cable The RocketPort INFINITY Octa RJ45 PCI serial card delivers eight-ports of additional in-server serial connectivity and has communication speeds up to 921KbpsPart Number: 30002-1 32 or 64 Bit 3.3 or 5 volt universal PCI or PCI-X connectivity Low-profile or standard height compatible RS-232, RS-422, RS-485 software-selectable serial ports High performance cards with communication speeds up to 921 Kbps Support for the most popular Windows operating systems (including Windows® 10) and Linux kernels Windows driver, which can be configured for interrupt or polling mode Free troubleshooting tools in the event you want to diagnose an issue: Hardware diagnostics, LCOM (Linux tool for testing serial ports), Pepperl+Fuchs Comtrol Utility, which includes Test Terminal (WCOM2) for serial port testing and Port Monitor for monitoring ports This RocketPort INFINITY octacable product delivers eight-ports of additional in-server serial connectivity via a fan-out RJ45 octacable. Data communication of 921Kbps is connected through RS-232/422/485 software-selectable ports. The serial adapter card is a low profile design suitable for use in both standard servers and 2U rackmount servers. Product is fully compatible with systems that have 32 or 64 bit 3.3 or 5 volt PCI and PCI-X expansion slots. The INFINITY design utilizes the Pepperl+Fuchs Comtrol Unity ASIC technology that takes full advantage of the 66 MHz BUS speed available on PCI-X servers. Includes: RocketPort Infinity Octa RJ45 Device RJ45 Octa Cable 10" Loopback Plug Bracket (1) Comtrol Software & Documentation CD
