PCI Express multi-port serial communication card 30128-8

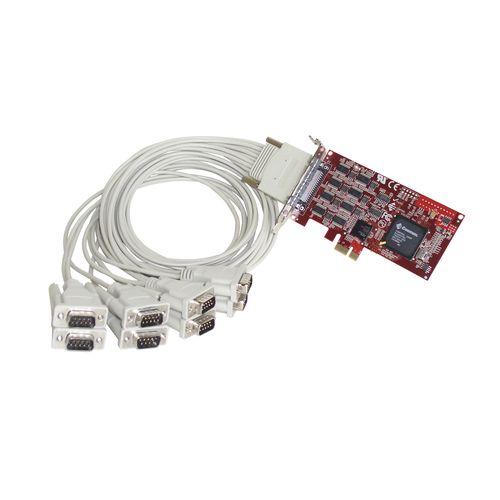

RocketPort ® EXPRESS Octacable DB9MPCI Express 8-Port serial card with DB9M fanout cable The RocketPort EXPRESS Octa DB9M is an eight port serial adapter with communication speeds up to 921 Kbps. The PCIe serial card comes with a DB9M fanout cable.Part Number: 30128-8 PCI Express serial x1, x2, x4, x8, x12 and x16 lane connectivity Low-profile or standard height compatible RS-232, RS-422, RS-485 software-selectable serial ports High performance serial port expansion cards with communication speeds up to 921 Kbps Support for the most popular Windows operating systems (including Windows® 10) and Linux kernels Windows driver, which can be configured for interrupt or polling mode Free troubleshooting tools in the event you want to diagnose an issue: Hardware diagnostics, LCOM (Linux tool for testing serial ports), Pepperl+Fuchs Comtrol Utility, which includes Test Terminal (WCOM2) for serial port testing and Port Monitor for monitoring ports The RocketPort EXPRESS Octa DB9M is an eight port serial adapter that is compatible with systems that have x1, x2, x4, x8, x12 or x16 PCI Express expansion slots. The card is designed for standard and low-profile PCs and servers and ships with a low-profile and a standard-height bracket. The product provides support for software-selectable RS-232/422/485 serial communications and data transmission speeds up to 921 Kbps. Serial connections are made utilizing an external fan-out octacable with eight DB9M connectors that is included with the product. All RocketPort EXPRESS products are European RoHS directive compliant. Includes: RocketPort Express Octa DB9 Device DB9M Octa Cable 42" (4000196) Loopback Plug Bracket (1)
