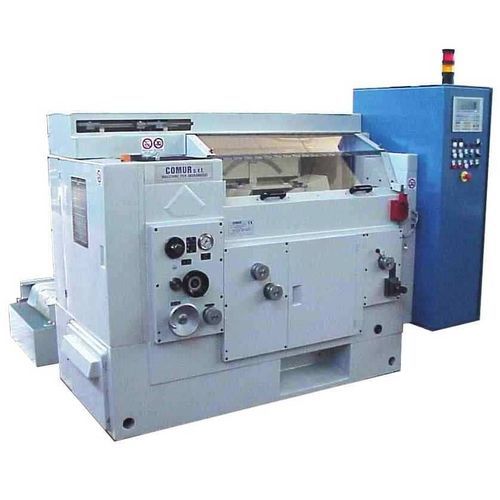

Gear hob sharpening machine A 200 PLC-controlled
Add to favorites
Compare this product
Characteristics
- Applications
- for gear hobs
- Control type
- PLC-controlled
- Spindle speed
Min.: 1,500 rpm
(9,425 rad.min-1)Max.: 2,700 rpm
(16,965 rad.min-1)- Power
9.5 kW
(12.92 hp)
Description
Maximum outside diameter for screw flute cutters - 230 mm
Maximum outside diameter for straight flute cutters - 250 mm
Minimum diameter of the cutters - mm 0
Maximum depth of the groove - 50 mm
Minimum groove pitch - 5 "
Maximum groove pitch -
Maximum helix angle of the flute - 45 °
Number of grooves - 3 to 45
Maximum stroke of the slide - 475 mm
Maximum wheel diameter - 250 mm
Minimum wheel diameter - 180 mm
Stroke speed of the slide progressively adjustable - m / min from 0 to 12
Workpiece holder spindle centering cone - ISO 40
Machine weight without packaging - Kg. 3600
